Mixed-precision palettization with ResNet50

In this article we walk through the Mixed-Precision Compression workflow applied to ResNet50 weight palettization. We use 2/4/6-bit per-tensor palettization as our candidate configs, PSNR on logits as the sensitivity metric, and generate the recipe with the greedy approach targeting 4 bits-per-weight (BPW). See the linked page for definitions of each term and the three-stage workflow.

Model and dataset

We apply palettization to a pretrained ResNet50 (IMAGENET1K_V1 weights) from torchvision. The model has 54 conv and linear layers — these are the weights we palettize. We draw data samples from the ImageNet validation set: 2560 images for sensitivity computation and the full 50,000-image validation set for top-1 evaluation. All accuracy numbers reported below are measured using PyTorch with mps backend.

Baseline

The pretrained model at fp16 gives us a top-1 eval accuracy of 75.02%.

Uniform 4-bit palettization

The simplest compression strategy is to apply the same per-tensor 4-bit lookup table (LUT) to every layer. This gives us roughly a 4x reduction in model size going from 16-bit precision to 4-bit precision, plus a small overhead for storing the lookup table itself.

We build a uniform config by setting a single global_config that applies to every palettizable layer, then run k-means palettization and use the prepared model directly for evaluation.

import torch

from coreai_opt.palettization import (
    KMeansPalettizer,
    KMeansPalettizerConfig,
    ModuleKMeansPalettizerConfig,
    PalettizationSpec,
)
from coreai_opt.palettization.spec import PerTensorGranularity

cfg = KMeansPalettizerConfig(
    global_config=ModuleKMeansPalettizerConfig(
        op_state_spec={
            "weight": PalettizationSpec(n_bits=4, granularity=PerTensorGranularity()),
        },
    ),
)
palettizer = KMeansPalettizer(model, cfg)
palettized_model = palettizer.prepare(example_inputs=(torch.randn(1, 3, 224, 224),))

Top-1 accuracy on the eval set: 65.87%.

Mixed-precision compression

For this example we use 2/4/6-bit per-tensor palettization as our candidate configs for every layer.

Layer-wise sensitivity computation

To compress a single layer in isolation, we set global_config=None and add a module_name_configs entry that targets only that layer’s fully qualified name. For example, palettizing only conv1 at 2 bits:

cfg = KMeansPalettizerConfig(
    global_config=None,
    module_name_configs={
        "conv1": ModuleKMeansPalettizerConfig(
            op_state_spec={
                "weight": PalettizationSpec(
                    n_bits=2, granularity=PerTensorGranularity()
                ),
            },
        ),
    },
)

The fully qualified names used as module_name_configs keys (e.g. "conv1", "layer1.0.conv1", "fc") come from iterating model.named_modules() and keeping the modules supported for palettization.

For ResNet50 this produces 54 entries — 53 conv layers plus the final fc linear.

We run this for every (layer, candidate config) pair and score each candidate against the baseline with PSNR to yield a sensitivity table. The first five layers look like this:

Layer	Config	Size (KB)	Sensitivity (PSNR)
conv1	2-bit	2.31	22.79
conv1	4-bit	4.66	31.64
conv1	6-bit	7.14	44.27
layer1.0.conv1	2-bit	1.02	31.89
layer1.0.conv1	4-bit	2.06	44.98
layer1.0.conv1	6-bit	3.25	55.60
layer1.0.conv2	2-bit	9.02	36.42
layer1.0.conv2	4-bit	18.06	47.21
layer1.0.conv2	6-bit	27.25	57.06
layer1.0.conv3	2-bit	4.02	35.17
layer1.0.conv3	4-bit	8.06	48.50
layer1.0.conv3	6-bit	12.25	59.20
layer1.0.downsample.0	2-bit	4.02	28.24
layer1.0.downsample.0	4-bit	8.06	40.45
layer1.0.downsample.0	6-bit	12.25	52.55

Higher PSNR means lower sensitivity — that bitwidth distorts the layer’s output less.

Recipe generation

We run the greedy recipe generation on the sensitivity table with a target BPW of 4, which assigns all 54 layers and realizes a BPW of 3.95. The bitwidth distribution is:

• 2 layers at 6-bit (most sensitive): conv1, layer1.0.downsample.0

• 50 layers at 4-bit

• 2 layers at 2-bit (least sensitive): layer1.1.conv1, layer3.4.conv2

Results

Comparing against the FP16 baseline and uniform 4-bit:

Configuration	BPW	Size (MB)	Top-1 accuracy
FP16 baseline	16	48.64	75.02%
uniform 4-bit	4	12.16	65.87%
mixed precision (target 4)	3.95	12.03	70.27%

At a slightly lower BPW than uniform 4-bit, mixed precision lifts top-1 accuracy from 65.87% to 70.27% — recovering more than four percentage points of the gap to the FP16 baseline — by spending its bit budget on the layers that are more sensitive.

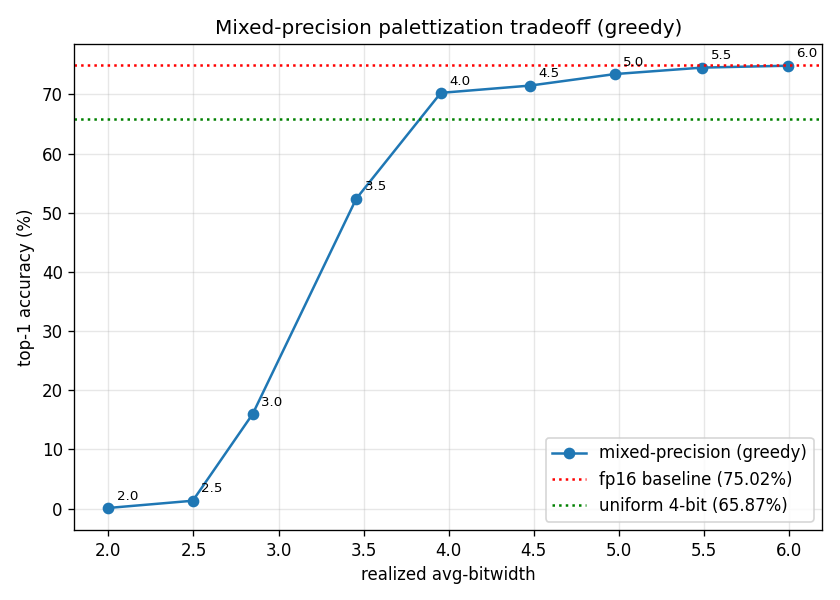

Accuracy vs BPW graph

We sweep the target BPW from 2 to 6 to trace out the curve below.

The inflection sits at around 4.0 realized BPW: below it, every additional 0.5 BPW buys us 15-35 percentage points of accuracy; above it, gains drop to 1-2 points per 0.5 BPW as the curve flattens toward the FP16 baseline.

Summary

At the same model size, mixed-precision palettization significantly narrowed the gap to the FP16 baseline compared to uniform 4-bit palettization.
