EmbeddingView

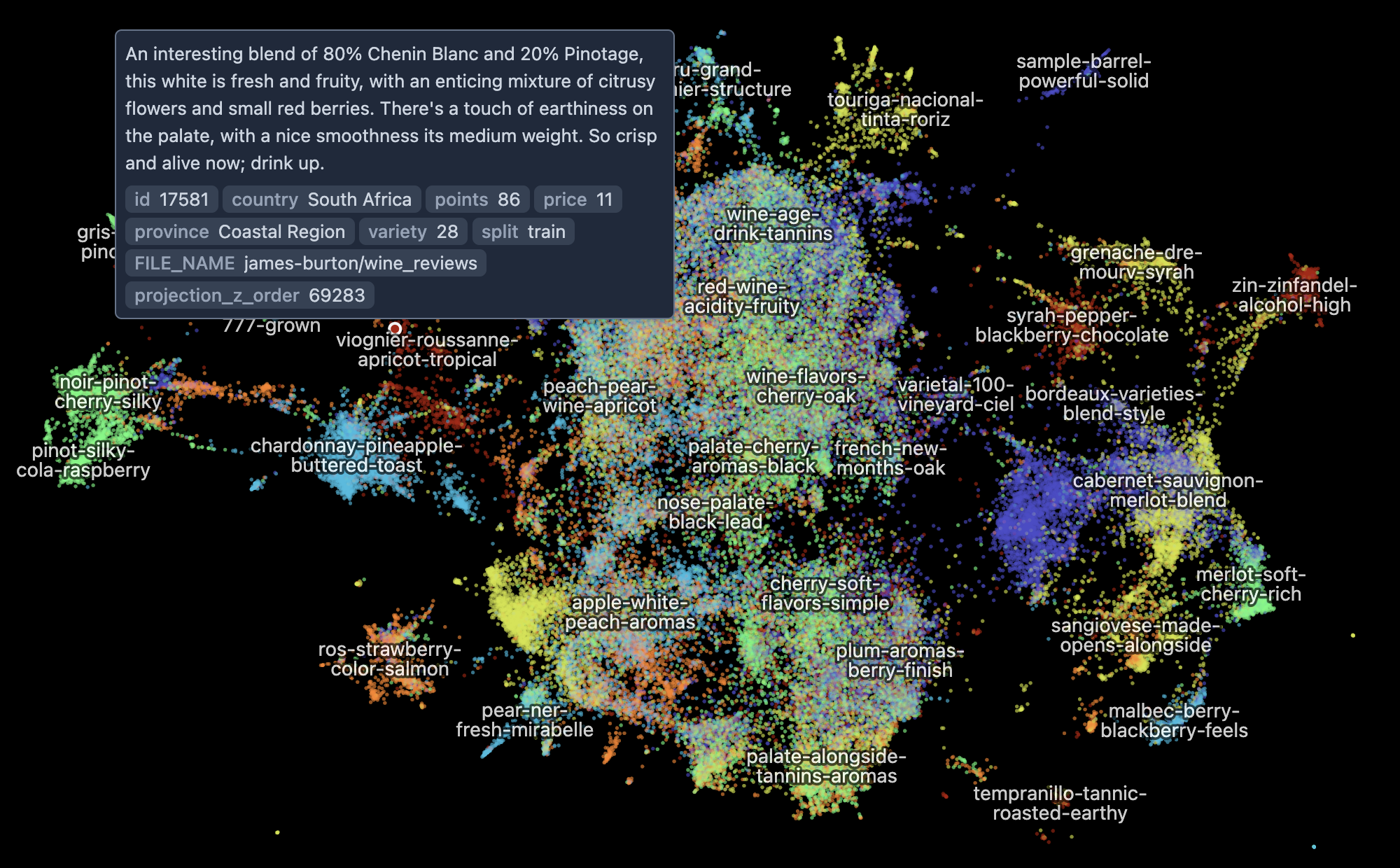

The embedding-atlas package contains a component for displaying up to a few millions of points from an embedding with x and y coordinates.

We also provide React and Svelte wrappers of the component to easily include it in your own application.

bash
npm install embedding-atlas

To use the React wrapper:

js
import { EmbeddingView } from "embedding-atlas/react";

// Capture the view's tooltip with a state
let [tooltip, setTooltip] = useState(null);

let xColumn: Float32Array;
let yColumn: Float32Array;
let categoryColumn: Uint8Array; // optional

<EmbeddingView
  data={{x: xColumn, y: yColumn, category: categoryColumn}}
  tooltip={tooltip}
  onTooltip={setTooltip}
  ...
/>

To use the Svelte wrapper:

js
import { EmbeddingView } from "embedding-atlas/svelte";

// The tooltip as a state.
let tooltip = $state(null);

<EmbeddingView
  data={{ x: xColumn, y: yColumn, category: categoryColumn }}
  tooltip={tooltip}
  onTooltip={(v) => (tooltip = v)}
  ...
/>

If your application does not use React or Svelte, you may directly construct the component:

js
import { EmbeddingView } from "embedding-atlas";

let target = document.getElementById("container");
let props = {
  data: {
    x: xColumn,
    y: yColumn,
    category: categoryColumn,
    onTooltip: (value) => {
      // ...
    },
  },
};

// Create and mount the component
let component = new EmbeddingView(target, props);

// Update with new props
component.update(newProps);

// Destroy the component
component.destroy();

Properties

The view can be configured with the following properties (props):

data { x: Float32Array<ArrayBuffer>; y: Float32Array<ArrayBuffer>; category?: Uint8Array<ArrayBuffer> | null; }

Required. The data.

x Float32Array<ArrayBuffer>

Required. An array of X coordinates, must be a Float32Array.

y Float32Array<ArrayBuffer>

Required. An array of Y coordinates, must be a Float32Array.

category Uint8Array<ArrayBuffer> | null

An array of category indices, must be a Uint8Array.

categoryColors string[] | null

The colors for the categories. Category i will use the i-th color from this list. If not specified, default colors will be used.

labels Label[] | null

Labels to display on the embedding view. Each label must have x, y, and text properties, and optionally level and priority.

width number | null

The width of the view.

height number | null

The height of the view.

pixelRatio number | null

The pixel ratio of the view.

theme ThemeConfig | null

Configure the theme of the view.

config EmbeddingViewConfig | null

Configure the embedding view.

viewportState ViewportState | null

The viewport state. You may use this to share viewport state across multiple views. If undefined or set to null, the view will use a default viewport state. To listen to viewport state change, use onViewportState.

tooltip DataPoint | null

The current tooltip. The tooltip is an object with the following fields: x, y, category, text, identifier. To listen for a tooltip change, use onTooltip.

selection DataPoint[] | null

The current single or multiple point selection. Selection is triggered by clicking on the points (shift/cmd+click will toggle points). The selection is an array of objects with the following fields: x, y, category, text, identifier. To listen to selection change, use onSelection.

rangeSelection Rectangle | null

A rectangle or a polygon (list of points) that represents the range selection. If the value is a list of points, it is interpreted as a lasso selection with a closed polygon with the list of points as vertices.

onViewportState ((value: ViewportState) => void) | null

A callback for when viewportState changes.

onTooltip ((value: DataPoint | null) => void) | null

A callback for when tooltip changes.

onSelection ((value: DataPoint[] | null) => void) | null

A callback for when selection changes.

onRangeSelection ((value: Rectangle | Point[] | null) => void) | null

A callback for when rangeSelection changes.

querySelection ((x: number, y: number, unitDistance: number) => Promise<DataPoint | null>) | null

An async function that returns a data point near the given (x, y) location. The unitDistance parameter is the distance of a single pixel in data domain. You can use this to determine the distance threshold for selecting a point.

queryClusterLabels ((clusters: Rectangle[][]) => Promise<(string | null)[]>) | null

An async function that returns labels for a list of clusters. Each cluster is given as a list of rectangles that approximately cover the region.

customTooltip CustomComponent<HTMLDivElement, { tooltip: DataPoint; }> | null

A custom renderer to draw the tooltip content.

customOverlay CustomComponent<HTMLDivElement, { proxy: OverlayProxy; }> | null

A custom renderer to draw overlay on top of the embedding view.

cache Cache | null

A cache for intermediate results.

Config

You can pass in an object with the following properties to the config property of the embedding view:

colorScheme "light" | "dark" | null

Color scheme.

mode "points" | "density" | null

View mode.

minimumDensity number | null

Minimum average density for density contours to show up. The density is measured as number of points per square points (aka., px in CSS units).

pointSize number | null

Override the automatically calculated point size. If not specified, point size is calculated based on density.

autoLabelEnabled boolean | null

Generate labels automatically. By default labels are generated automatically if the labels prop is not specified, and a text column is specified in the Mosaic view, or a queryClusterLabels callback is specified in the non-Mosaic view. Set this to false to disable automatic labels.

autoLabelDensityThreshold number | null

The density threshold to filter the clusters before generating automatic labels. The value is relative to the max density.

autoLabelStopWords string[] | null

The stop words for automatic label generation. By default use NLTK stop words.

Theme

You can pass in an object with the following properties to the theme property of the embedding view. You can also provide these options as light and/or dark properties, which will control the appearance of the view depending on its colorScheme. For example:

ts
{
  light: {
    clusterLabelColor: "black";
  }
  dark: {
    clusterLabelColor: "white";
  }
}

fontFamily string

The font family for texts.

clusterLabelColor string

Color for cluster labels.

clusterLabelOutlineColor string

Color for cluster labels' outline.

clusterLabelOpacity number

Opacity for cluster labels.

statusBar boolean

Whether to show the status bar at the bottom.

statusBarTextColor string

Color for status bar text.

statusBarBackgroundColor string

Color for status bar background.

Branding link.

Custom Tooltip

You may use the customTooltip property to change how tooltips are displayed.

First create a class for the custom tooltip component:

js
class CustomTooltip {
  constructor(target, props) {
    // Create the tooltip component and mount it to the target element.
    // props will contain a `tooltip` field, plus any custom prop you specified.
  }
  update(props) {
    // Update the component with new props.
  }
  destroy() {
    // Destroy the component.
  }
}

Then specify the customTooltip property to the component:

js
<EmbeddingView
  ...
  customTooltip={{
    class: CustomTooltip,
    props: { customProp: 10 } // Pass additional props to the tooltip component.
  }}
/>

Custom Overlay

You may use the customOverlay property to add an overlay to the embedding view.

First create a class for the custom overlay:

js
class CustomOverlay {
  constructor(target, props) {
    // Create the tooltip component and mount it to the target element.
    // props will contain a `proxy` field, plus any custom prop you specified.
    // You can use proxy.location(x, y) to get the pixel location of a data point at (x, y).
  }
  update(props) {
    // Update the component with new props.
  }
  destroy() {
    // Destroy the component.
  }
}

Then specify the customOverlay property to the component:

js
<EmbeddingView
  ...
  customOverlay={{
    class: CustomOverlay,
    props: { customProp: 10 } // Pass additional props to the overlay component.
  }}
/>
